Cooling & Air-conditioning
Induction system


This system uses a high velocity, high pressure (that means that small ductwork is required), constant volume air supply to a high induction type of terminal. Induced air from the room is either heated or cooled within the terminal as required. This capacity control is by flow of water or by-pass. This system may use 2 pipes (one water circuit) or 4 pipes (2 water circuits) for heating and cooling.

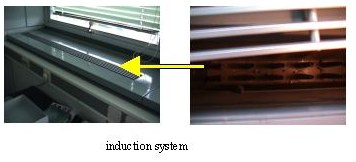

  Induction units are usually installed under a window at a perimeter wall, although units designed for overhead plenum installation are available. A number of induction unit configurations are available.
